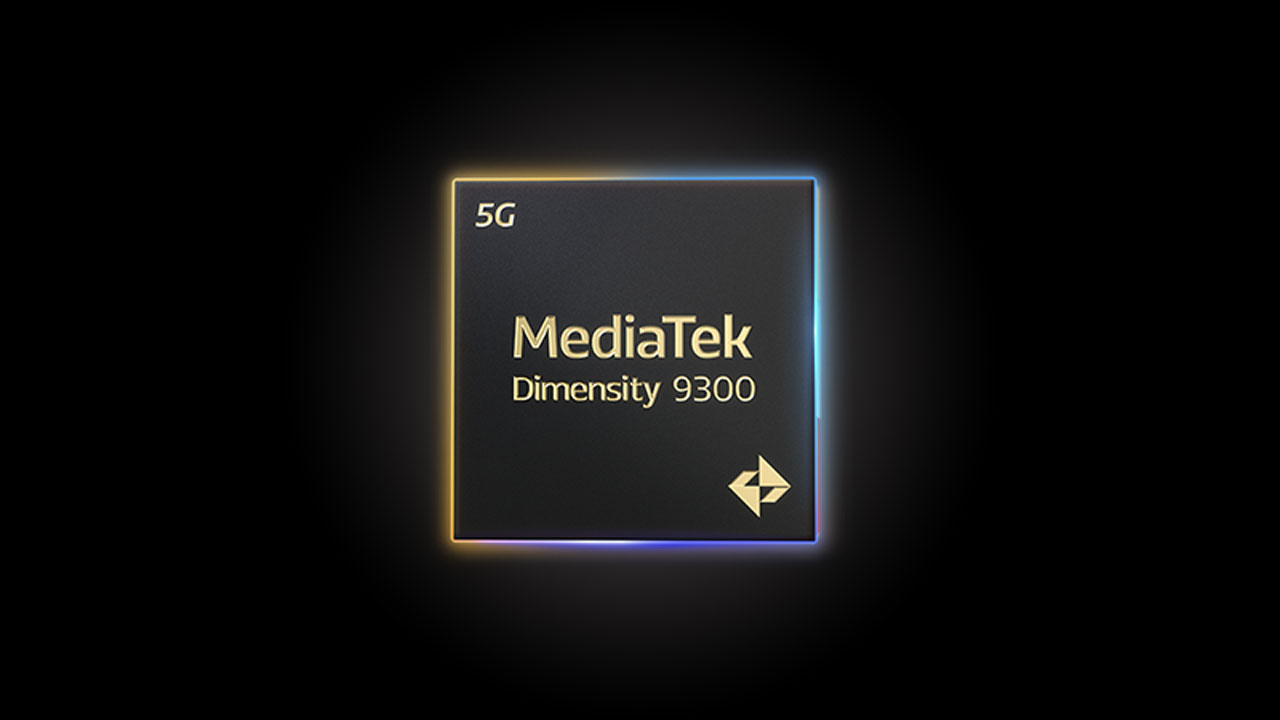

The MediaTek Dimensity 9300 is a high-end mobile processor launched in late 2023. It features an innovative all-big-core CPU architecture with one Cortex-X4, delivering significant performance and power efficiency improvements over its predecessor. Below you will find full specifications, a phone list, and various benchmarks for the MediaTek Dimensity 9300.
Key Specs
- ✅ Manufacturing Process: 4nm
- ✅ CPU: Octa-core (8 cores)
- ✅ CPU Prime cores: 1x Cortex-X4 @ 3.25GHz
- ✅ CPU performance cores: 1x Cortex-X4 @ 2.85GHz
- ✅ CPU efficiency cores: 4x Cortex-A720 @ 2.0GHz
- ✅ GPU: Arm Immortalis-G720 MC12
- ✅ AI: MediaTek NPU 790
- ✅ Camera Support: Up to 320MP, 8K @ 60fps video
- ✅ Display: Up to WQHD @ 180Hz and 4K @ 120Hz
- ✅ Memory: LPDDR5T RAM
- ✅ Storage: UFS 4.0
- ✅ Connectivity: MediaTek T830, Wi-Fi 7, Bluetooth 5.4
Full Specs
These are the full specifications of the MediaTek Dimensity 9300
| MediaTek Dimensity 9300 | |
|---|---|
| Cores | 8 |
| Prime Cores | 1 x Cortex-X4 |
| Performance Cores | 3 x Cortex-X4 |
| Efficiency Cores | 4 x Cortex-A720 |
| Threads | 8 |
| Clock Speed (Prime Core) | 3.25 GHz |
| Clock Speed (Performance Core) | 2.85GHz |
| Clock Speed (Efficiency Core) | 2.0 GHz |
| Instruction Set | ARMv9.2-A |
| L1 Cache | 128 kb |
| L2 Cache | 1 mb |
| L3 Cache | 8 mb |
| Fabrication Process | 4nm |
| Transistors | 22.7 billion |
| TDP | 7 W |
| Integrated Graphics | Arm Immortalis-G720 MC12 |
| GPU Clock Speed | 1300 MHz |
| Pipelines | 12 |
| Shading Units | 128 |
| Shaders | 1536 |
| FLOPS | 3993.6 Gigaflops |
| DirectX | 12 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| AI engine | MediaTek NPU 790 |
| Memory | LPDDR5T |
| Memory frequency | 4800 MHz |
| Max Memory Size | 24 GB |
| Memory Bus | 4x 16 Bit |
| Storage | UFS 4.0 |
| USB Interface | Type-C USB 3.2 |
| Modem | MediaTek T830 |
| 5G | Yes |
| Wi-Fi | 7 |
| Bluetooth | 5.4 |
| Download Speed | 7.9 Gbps |
| Upload Speed | 4.2 Gbps |
| Max Display resolution | 3840 x 2160 |
| Max Display Refresh Rate | WQHD @ 180Hz 4K @ 120Hz |
| Max camera resolution | 320 MP |
| Video capture | 8K @ 60 fps 4K @ 60 fps |
| Video codecs | H.264 H.265 VP9 AV1 |
| Audio codecs | AAC MP3 SBC aptX LDAC |
| Navigation tech | GPS GLONASS NAVIC Galileo Beidou QZSS |
| NFC Support | Yes |
| Release date | 06 November 2023 |
Benchmarks
Now that you know the basic specs, take a look at some popular benchmark standards for smartphone CPUs to find out how good the MediaTek Dimensity 9300 is in performance.
Antutu 10
For the Overall performance of the chipset
- Overall – 2,018,088
- CPU – 485,205
- GPU – 811,002
- Memory – 372,461
- UX – 349,420
Geekbench 6
To determine the single-core and multicore performance of the CPU individually.
- Single-core – 1,866
- Multi-core – 6,510
3DMark WildLife
For Graphical capabilities
- Overall Score – 11,079
AI Benchmark
To check the AI capabilities of the smartphone chipset
- AI Score – 9,452
Smartphone Mobile List
If you are looking to buy a mobile or smartphone with a MediaTek Dimensity 9300, here is the list of all the smartphone devices with this chipset.
- Oppo Find X7
- Vivo X100 Pro
- Vivo X100
If we have missed any smartphones, please let us know in the comments so we can update the list.
